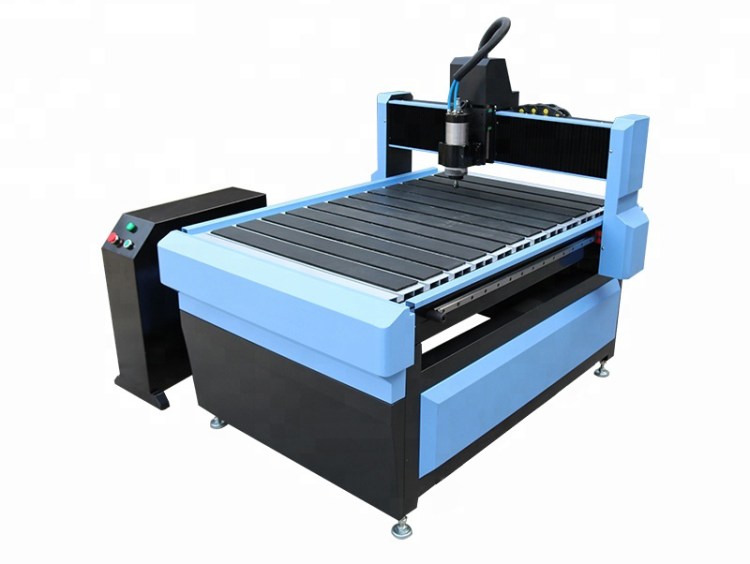

- Industrially produced CNC router.
Cast iron and steel frame – welded, heat-treated and powder coated.
Industrial-grade rigidity allows for deeper and faster cuts (aluminum, bronze, wood materials, plastics etc).
The weight of the machine is ca 400 kg.
- Working area: 900×1500 mm, Z-axis 100 mm
- Max speed: up to 20’000 mm/min (X and Y)
- Positioning accuracy: +/- 0,02mm
- Quality warranty: 12 months. Local support from Estonia, Tallinn.
- Price: from 3’900 EUR + VAT 20%
Frame, legs and gantry:
massive cast iron and steel frame (welded, heat-treated, powder coated)
Y-axis: TBI ball screw (x2);
X-axis: TBI ball screw;
Z-axis: TBI ball screw.
Y-axis: Hiwin linear rails and carriages;
X-axis: Hiwin linear rails and carriages;
Z-axis: Hiwin linear rails and carriages.
As per customer’s request (Mach3, LNC etc etc – name your favourite, we can likely provide it).
Complete cable system:
The machine needs 220V AC supply;
220V components by Schneider.
Leadshine powerful stepper motors;
Leadshine motor drivers.
Brushless spindle with variable frequency inverter.
Power: 1.5 kW or 2.2 kW (as per customer’s request);
Precise numeric speed control 0…24’000 rpm;
Air- or water cooled (as per customer’s request);
Collet (max tool size): 0,5…13 mm or as per customer’s request.
Y, X, Z – endstops
Dust shoe – as per customer’s request.
